Current bridges


Current bridges for the rim of BO 54 tram wheels are made up of the following parts:

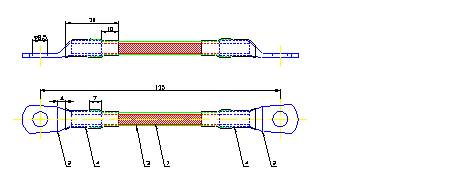

Current Bridges - Drawing
Copper cable 16mm2 E-Cu
Cable eye KL8-16F, E-Cu, Zn
VSC 40-8 insulating tube
Self-shrinking CGPT 12/4 tube

All materials have a preferred origin in the European Union.

Processing is performed on up-to da-te machinery.

Our company will manufacture any cable assembly whatsoever according to your specifications, cross-section of the wire ranging from 0,25 to 400mm2, diameter of the wire from 0,05mm).

Completed part
Current Bridges - Completed Part
